Specifications
|
||
|---|---|---|

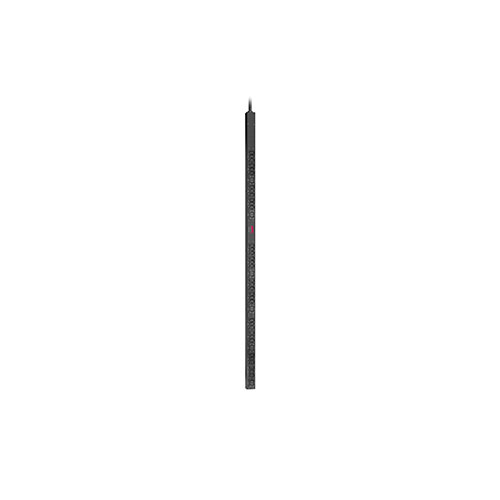

| Model / Part Number | AP7564 | |
| Product Type | Basic Rack Power Distribution Unit (PDU) | |
| Form Factor | Zero U (vertical rack mount) | |
| Rated Power Capacity | 5.7 kW (5700 VA) | |
| Nominal Input Voltage | 208 V AC | |
| Nominal Output Voltage | 208 V AC | |
| Input Connection | NEMA L21‑20P plug (single power cord – ~0.9 m) | |
| Input Frequency | 50 / 60 Hz | |
| Maximum Input Current | ~20 A | |
| Total Outlets | 42 | |
| Outlet Types | 36 × IEC 60320 C13 6 × IEC 60320 C19 | |
| Overload Protection | None (basic PDU) | |
| Mounting Orientation | Vertical (Zero U rack installation) | |
| Installation Kit | Includes rack mounting brackets + toolless kit | |
| Colour | Black | |
| Dimensions (H × W × D) | ~1778 × 56 × 44 mm | |
| Net Weight | ~5.45 kg | |
| Operating Temperature | 0 °C – 45 °C | |
| Operating Humidity | 5 % – 95 % non‑condensing | |
| Certifications / Compliance | UL, cUL, CSA, RoHS | |
APC AP7564 Basic Rack PDU, Zero U, 5.7 kW, 208V – (36) C13 & (6) C19 Outlets Price in Dubai UAE
