Specifications
|
||
|---|---|---|

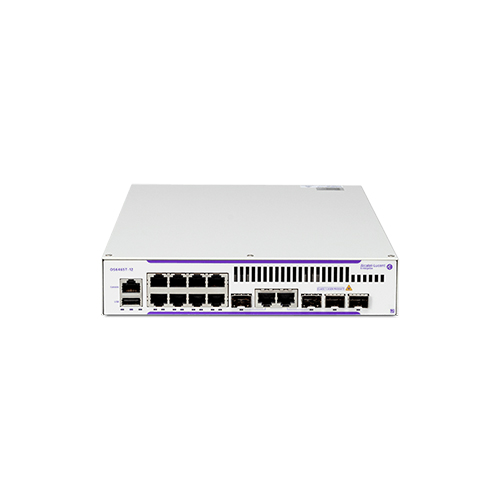

| Product Name | Alcatel‑Lucent OmniSwitch 6465T | |
| Model Variants | OS6465T‑12, OS6465T‑P12 | |
| Switch Type | Fully managed, Layer‑3, rugged / industrial Gigabit switch | |
| Ports / Interfaces | 12 ports total; PoE version supports ~8 RJ‑45 PoE+ ports plus combo and SFP ports; USB Type A port; Console (RS‑232 RJ‑45) | |
| PoE / Power | PoE / PoE+ support in “P” variant; PoE power budget ~115 W | |
| Layer‑3 Features | Layer 3 routing in addition to Layer 2 switching (static routing, VLAN routing) | |
| Security & Timing | MACsec on all ports; IEEE‑1588v2 / PTP support for precise timing | |
| Operating Temperature | ‑10 °C to +60 °C (operating), ‑40 °C to +85 °C (storage) | |
| Environmental / Mechanical | Humidity 5‑95 % non‑condensing; altitude up to ~13,000 ft; dimensions: W ~ 21.7 cm × H ~ 4.4 cm × D ~ 28 cm; weight: ~1.7 kg (non-PoE), ~2 kg (PoE) | |
| Switching / Throughput | Switching capacity ~24 Gbps; forwarding rate ~17.9 Mpps | |
| Fan / Noise | Fan‑less operation up to ~45 °C; fans active above that in PoE variants; noise ~56 dBA in high ambient conditions | |
| Management & Features | Virtual chassis up to 4 switches; redundant ring topologies; switch backup & restore (USB); zero‑touch provisioning; MACsec and Layer‑2 security features | |
| Power Consumption | Idle ~8.5 W; full load ~16‑19 W (non-PoE); higher with PoE load | |
| Mounting / Form Factor | Half‑rack 1U form factor; internal power supply; suitable for industrial / rugged environments | |
Alcatel-Lucent OSW-6465T-RW OmniSwitch 6465 Rugged / Industrial Gigabit Switch Price in Dubai UAE
Enquire on Whatsapp
Description
