| Feature | Specification |
|---|---|
| Model | OmniSwitch OS6560-P48X4 |
| Form Factor | Rack-mountable, 1U |
| Ports | 48 × Gigabit Ethernet (10/100/1000) RJ-45 with PoE+ |
| Uplink Ports | 4 × 10-Gigabit SFP+ (fiber uplinks) |
| Power over Ethernet (PoE) | IEEE 802.3af/at (PoE+) |
| PoE Budget | Up to 370 W (expandable with additional PSU) |
| Switching Capacity | ~176 Gbps |
| Forwarding Rate | ~130 Mpps |
| MAC Address Table Size | 16K entries |
| Stacking | Virtual Chassis technology supported |
| Layer | Layer 2 / Layer 3 (static and dynamic routing) |
| Management | Web GUI, CLI, SNMP, OmniVista NMS |
| Reliability | Redundant, hot-swappable power supplies and fans (optional) |
| Dimensions | 1U – 44 mm (H) × 440 mm (W) × 330 mm (D) approx. |
| Weight | ~5 kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |

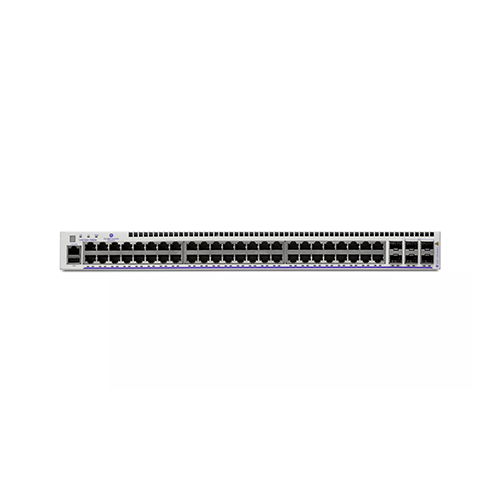

Alcatel-Lucent OmniSwitch OS6560-P48X4 – 48-Port PoE+ Gigabit Access Switch with 4×10G Uplinks Price in Dubai UAE
Enquire on Whatsapp
Description
