Specifications
|
||
|---|---|---|
| Model | OAW-AP1361-RW | |
| Series | OmniAccess Stellar AP1360 Series | |
| Deployment Type | Indoor Access Point | |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) | |
| Radios | Tri-radio: 4×4:4 (5 GHz), 2×2:2 (2.4 GHz), dedicated scanning radio | |
| Max Data Rate | 2.4 Gbps (5 GHz) + 573 Mbps (2.4 GHz); ~3 Gbps total | |
| Ethernet Ports | 1 × 10/100/1000/2500 Mbps (RJ-45), 1 × 10/100/1000 Mbps (RJ-45), 1 × SFP | |
| USB Port | 1 × USB 2.0 Type-C (5V, 1A) | |
| PoE Support | IEEE 802.3af (12.95W) | |
| Antenna Type | Integrated omni-directional antennas | |
| Bluetooth/Zigbee | Integrated BLE/Zigbee radio | |
| Security Features | WPA2, WPA3, 802.1X, AES, TKIP, WEP, OWE, ACL, wIPS/wIDS, DPI | |
| Client Capacity | Up to 1024 concurrent clients | |
| Key Features | OFDMA, MU-MIMO, 1024-QAM, BSS Coloring, TWT, Beamforming | |
| QoS & Traffic Mgmt | WMM/WME, VLAN tagging, rate limiting, DHCP snooping | |
| Management Options | OmniVista Cirrus (cloud), OmniVista 2500 (on-prem), standalone clustering | |
| Mounting Options | Ceiling, wall mount (mount kit included) | |
| Dimensions (W × D × H) | 243 × 243 × 85 mm | |
| Weight | 2.5 kg (5.5 lb) | |
| Operating Temperature | 0°C to 45°C | |
| Storage Temperature | –40°C to 70°C | |
| Humidity | 5% to 95% non-condensing | |
| Power Consumption | Max 12.95W (PoE) | |
| Certifications | CE, FCC, UL, RoHS, WEEE, REACH | |
| Ideal Use Cases | High-density indoor environments, enterprise offices, IoT deployments | |

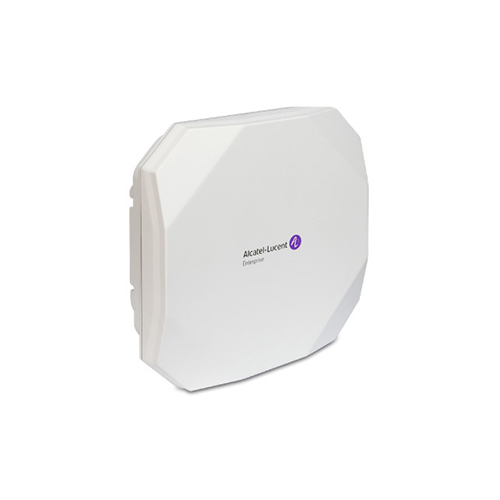

Alcatel-Lucent OAW-AP1361-RW OmniAccess Stellar Indoor Access Point Price in Dubai UAE
